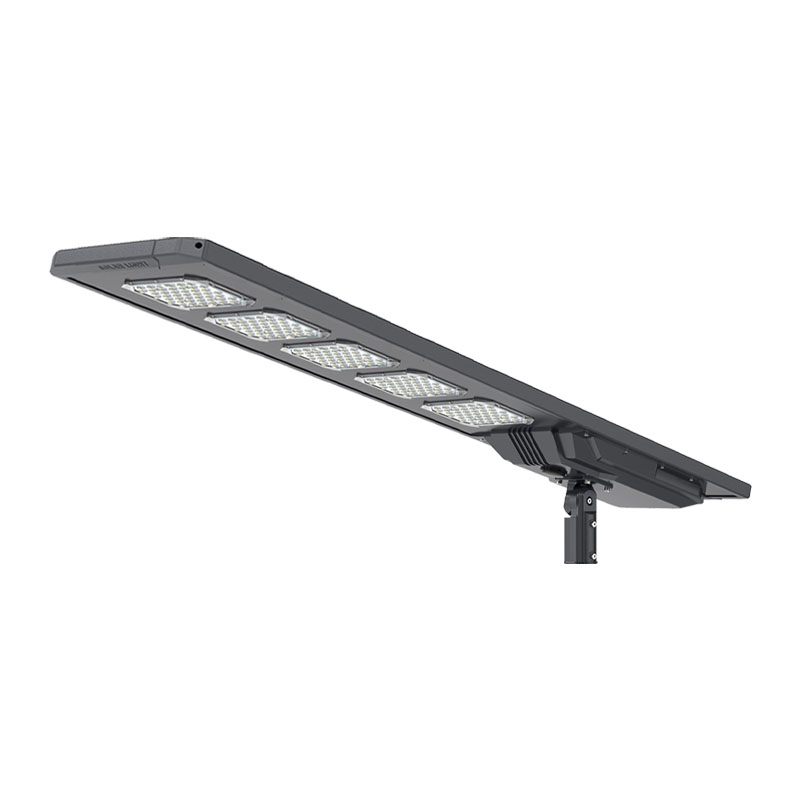

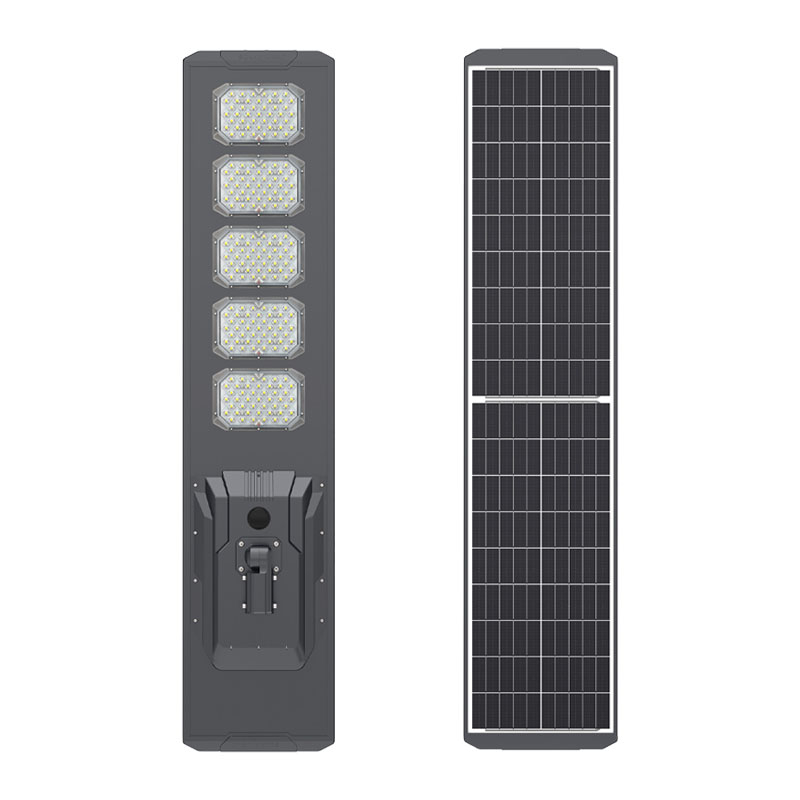

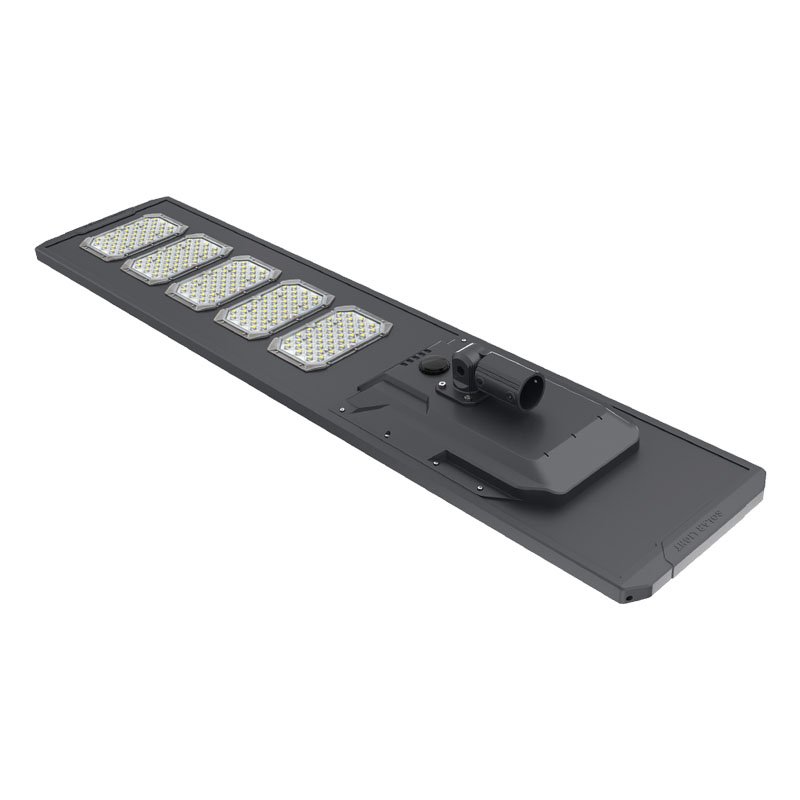

MJ-SS500 Integrated Industrial Solar Smart Street Light for Outdoor

LED Light: 500W, 225pcs,SMD5050
Solar Panel: 140W/4.5V,MONO
Lithium Battery: 165AH/3.2V , LiFePO4
Material: Die-casting Aluminum
Certificate: CE,ROHS

Availability:

Quantity:



Inquire Add to Basket

Model:
MJ-SS500
Brand:
NEWSKY POWER

Product Description

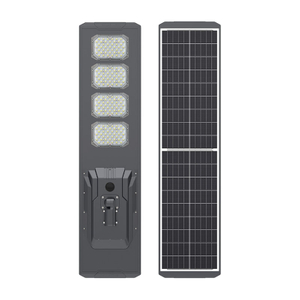

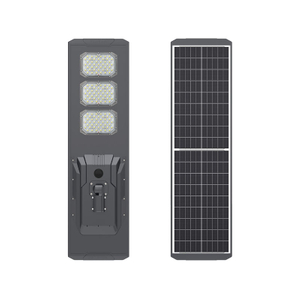

Model		MJ-SS100	MJ-SS200	MJ-SS300	MJ-SS400	MJ-SS500
Power		100W	200W	300W	400W	500W
LED Chip		45pcs,SMD5050	90pcs,SMD5050	135pcs,SMD5050	180pcs,SMD5050	225pcs,SMD5050
LiFePo4 Battery		3.2V/55Ah	3.2V/85Ah	3.2V/100Ah	3.2V/130Ah	3.2V/165Ah
Solar Panel		4.5V/65W	4.5V/85W	4.5V/110W	4.5V/125W	4.5V/140W
Discharge Current		8A	10A	12A	16A	20A
Luminous Flux	Regular Type	4000lm	5000lm	6000lm	8000lm	10000lm
Luminous Flux	Sensor Type	5200lm	6400lm	7800lm	10400lm	13000lm
Installation Height		5-6m	6-7m	6-8m	6-10m	6-10m
Distance Between Each		17-21m	21-25m	21-28m	21-35m	21-35m
CCT		6000-6500K
Radar Sensor		Optional
Product Features		Optical+Remote Control
IP Rank		IP65
Charging Time		Effective sunshine 4-6H
Discharge Time		3-5 rainy & cloudy days
Material		Die-casting Aluminium +Teijin PC
Solar Panel Size(mm)		398*830	398*1050	398*1360	398*1565	398*1750
Lamp Size(mm)		910400102	1130400102	1440400102	1645400102	1830400102
Pole Size(mm)		60/76	60/76	60/76	60/76	60/76
