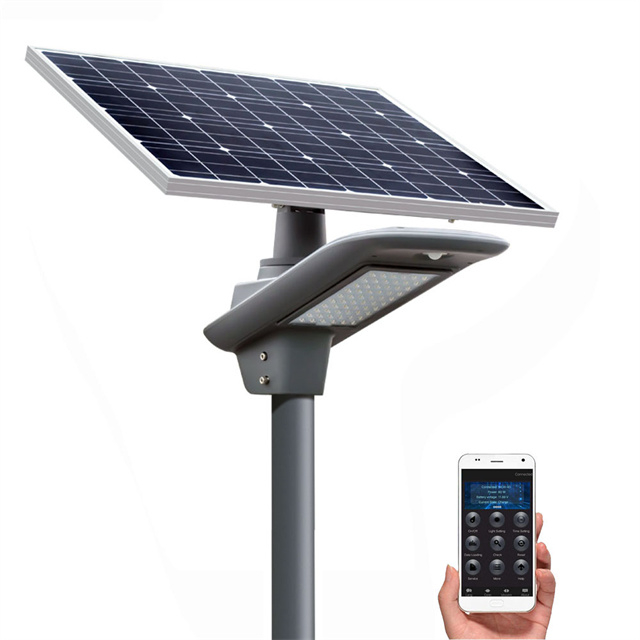

60W All in One Aluminum SOLAR LED STREET LIGHT

  • LED Light: 60W (5050LED,60pcs)
  • Solar Panel: 80W/18V,MONO
  • Lithium Battery: 38.4AH Lithium battery
  • Material: Die-casting aluminum
  • Certificate: CE,ROHS
Quantity:
  • NG60W
  • NEWSKY POWER


Overview



General information】60W SOLAR LED STREET LIGHT, Based on the stable electronical circuit of traditional integrated solar street light and semi-integrated solar street light, the Solar Light is upgraded and developed by our senior ID. Mechanical, Software and Hardware engineers. Bidirectional rotatable solar panel, light without mechanical switch, mobile APP Bluetooth remote control and convenient installation can meet the philosophy of PV industry perfectly --- Safety, Eco-friendly and Intelligent Application


Product introduction】All in One SOLAR LED STREET LIGHT as a outdoor lighting fixture, the Solar Light is powered by solar energy and designed to offer outstanding quality by utilizing A-class LED beads, integrated optical LED lens, high efficiency mono solar panel, powerful lithium battery, self-developed MPPT controller and patent Bluetooth APP system.



 【Operation principle】Aluminum SOLAR LED STREET LIGHT is a revolutionary product by utilizing Photovoltaic effect. It is designed to constantly absorb solar energy in daylight and convert to electricity, the intelligent controller could precisely control the charge, discharge and well preserve electricity into the lithium battery. And start to illuminate, which is powered by the lithium battery, once the illuminance of ground reduced to 15 lux in night time, or solar panel voltage drop to 5V below. The intelligent controller not only protects the battery from over-charging. over-discharging but also can control the light switch-on, the time of switch-on and optimize the brightness effectively according to the real-time environment.



Flexible Solar panel】60W All in One SOLAR LED STREET LIGHT, solar panel could be rotated 360 horizontally and 240 vertically, which will increase thephotoeletronical conversion maximum in different areas; customized solar panel is available


Product Warranty】All in One Aluminum SOLAR LED STREET LIGHT, we supply 5years quality guarantee if the product has any quality problem. Our professional service team is always ready to answer your concerns within 24 hours.


Sturdy material】60W Aluminum SOLAR LED STREET LIGHT, Die-casing Aluminum alloy material

Super thin patent design, Good heat dissipation, Anti-aging,anti-corrosion,Longer lifespan.


Parameter


LED light 60W (5050LED,60pcs)
Battery 38.4AH  Lithium battery
Solar panel 80W/18V,MONO
Controller MPPT
Work mode Motion sensor+dim light ,APP control
Lumen 7500-8500LM
Material Die-casting aluminum
Installation height 7-9m
Spacing 25-30m
Lighting time 3-5 rainy days, Max 10 rainy days
Charge time 6-8H
N.G/G.W (kg) 24 / 28
Product size(mm) 620*260*250   (light body)
755*670*30      (solar panel)
Carton size(mm) 695*325*315    (light body)
800*715*75    (solar panel)


Product Description

solar street light (1)solar street light (2)solar street light (3)solar street light (4)solar street light (5)solar street light (10)
