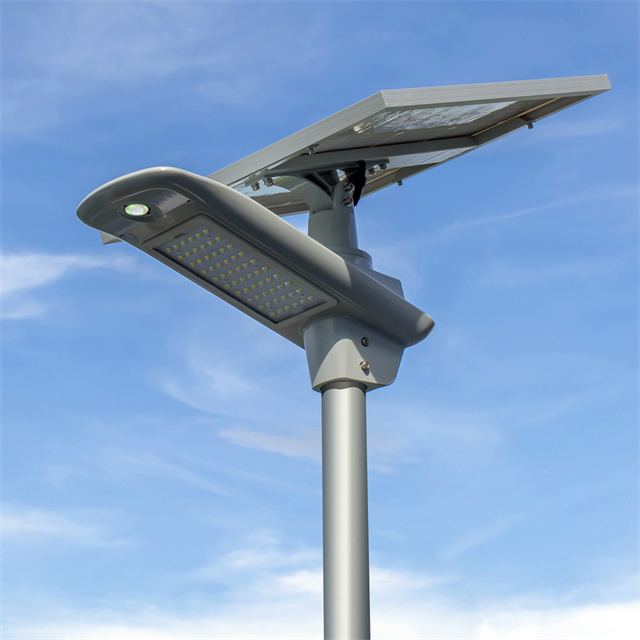

40W Integrated Aluminum SOLAR ROAD LIGHT
Home » Products » Solar street light » SPLIT Solar street light » NG Series » 40W Integrated Aluminum SOLAR ROAD LIGHT
Share to:

40W Integrated Aluminum SOLAR ROAD LIGHT

  • LED Light: 40W (5050LED,42pcs)
  • Solar Panel: 60W/18V,MONO
  • Lithium Battery: 28.8AH Lithium battery
  • Material: Die-casting aluminum
  • Certificate: CE,ROHS
  • NG-40W



☀【General information】40W SOLAR ROAD LIGHT, Based on the stable electronical circuit of traditional integrated solar street light and semi-integrated solar street light, the Solar Light is upgraded and developed by our senior ID. Mechanical, Software and Hardware engineers. Bidirectional rotatable solar panel, light without mechanical switch, mobile APP Bluetooth remote control and convenient installation can meet the philosophy of PV industry perfectly --- Safety, Eco-friendly and Intelligent Application

☀ 【Product introduction Integrated SOLAR ROAD LIGHT as a outdoor lighting fixture, the Solar Light is powered by solar energy and designed to offer outstanding quality by utilizing A-class LED beads, integrated optical LED lens, high efficiency mono solar panel, powerful lithium battery, self-developed MPPT controller and patent Bluetooth APP system.


☀ 【Operation principle】Aluminum SOLAR ROAD LIGHT is a revolutionary product by utilizing Photovoltaic effect. It is designed to constantly absorb solar energy in daylight and convert to electricity, the intelligent controller could precisely control the charge, discharge and well preserve electricity into the lithium battery. And start to illuminate, which is powered by the lithium battery, once the illuminance of ground reduced to 15 lux in night time, or solar panel voltage drop to 5V below. The intelligent controller not only protects the battery from over-charging. over-discharging but also can control the light switch-on, the time of switch-on and optimize the brightness effectively according to the real-time environment.


☀【Flexible Solar panel】40W Integrated SOLAR ROAD LIGHT, solar panel could be rotated 360 horizontally and 240 vertically, which will increase thephotoeletronical conversion maximum in different areas; customized solar panel is available


☀【Product Warranty Integrated Aluminum SOLAR ROAD LIGHT, we supply 5years quality guarantee if the product has any quality problem. Our professional service team is always ready to answer your concerns within 24 hours.


☀【Sturdy material】40W Aluminum SOLAR ROAD LIGHT, Die-casing Aluminum alloy material

Super thin patent design, Good heat dissipation, Anti-aging,anti-corrosion,Longer lifespan.



Model NG-40W
LED light 40W (5050LED,42pcs)
Battery 28.8AH  Lithium battery
Solar panel 60W/18V,MONO
Controller MPPT
Work mode Motion sensor+dim light ,APP control
Lumen 5000-6500LM
Material Die-casting aluminum
Installation height 5-7m
Spacing 15-20m
Lighting time 3-5 rainy days, Max 10 rainy days
Charge time 6-8H
N.G/G.W (kg) 22 / 25
Product size(mm) 620*260*250   (light body)
780*513*30      (solar panel)
Carton size(mm) 695*325*315    (light body)
825*560*75     (solar panel)

Product Description
